Efficient - Reliable - Hygienic
Direct-Drive Motion
Designed to replace traditional 1 HP AC Motor / 30:1 Gearbox setups

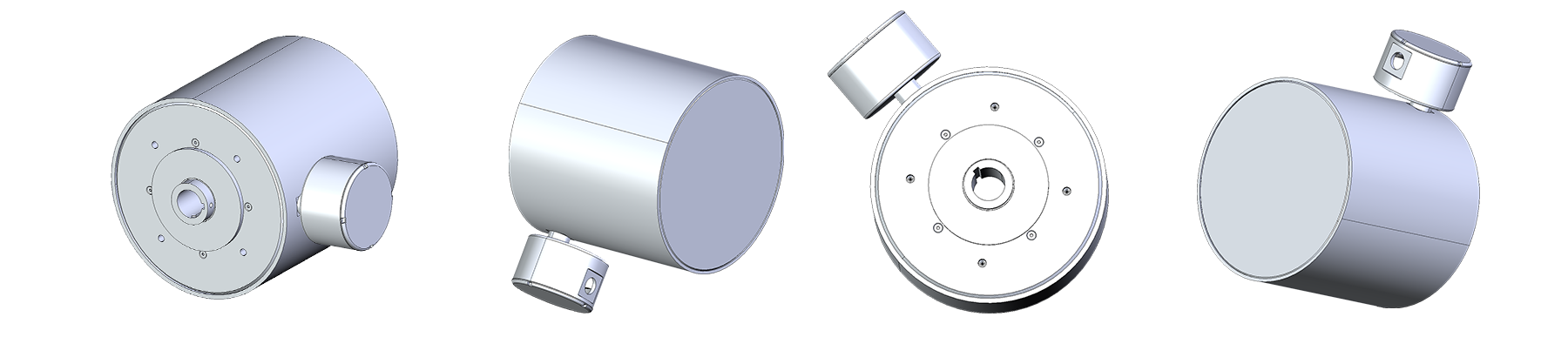

The One Motion Side Drive is a powerful and hygienically designed permanent magnet outrunner direct drive solution, engineered specifically for food-grade and sanitary environments. Delivering 40Nm (29.5 ft/lbs) continuous torque and peaking at 120Nm (88.6 ft/lbs), it offers exceptional performance with high-efficiency magnetic arrays that reduce energy consumption and eliminate the need for maintenance-prone gearboxes.
How It Works
The Side Drive is a drop-in replacement for traditional 1 HP AC motor and 30:1 gearbox setups, simplifying installation while enhancing reliability and cleanliness. With zero external moving parts and a smooth, cleanable design, it’s ideal for washdown areas and hygienic processing lines.
All One Motion products are compatible with any VFD that supports permanent magnet motors (PMM). Side Drive products use standardized vfd parameters, making setup nearly plug-and-play after the first installation.
There’s no required maintenance, no oil, and no hassle. Just reliable performance, backed by a 3-year warranty.
Key features
56C Face Mount
Designed for easy retrofits, Side Drive mounts directly onto existing gearbox-driven conveyors using a standard 56C face / torque arm mount. This allows quick upgrades without major modifications, while unlocking the efficiency and performance benefits of direct- drive technology.
Torque Output
Side Drive Delivers 40Nm (29.5 ft/lbs) continuous torque and peaks at 120Nm (88.6 ft/lbs) to meet your application demands.
Fully Washdown Safe
IP69K-rated and completely oil-free, making it ideal for food, beverage, and other sanitary environments. Its sealed design supports strict hygiene standards and minimizes downtime from cleaning or contamination.
Energy Efficient
Using an outer rotor permanent magnet motor, Side Drive delivers more torque while using less power. Compared to traditional AC motors, this translates to significantly improved efficiency and lower operating costs over time.
Extended Service Life
Side Drive's outrunner design has fewer moving parts and operates without oil or lubrication. It delivers high torque at low RPMs, which reduces mechanical stress and wear. Combined with a durable stainless steel, sealed construction, FLEX is built to perform reliably in even the harshest environments.
Controller Compatible
Like all One Motion products, Side Drive works with any VFD that supports permanent magnet motors (PMM), giving you flexibility to use your preferred control system without added complexity.
